Next-Gen Sensing: Safer, Sharper, Smarter
Next-Gen Sensing: Safer, Sharper, Smarter
Next-Gen Sensing: Safer, Sharper, Smarter
Next-Gen Sensing: Safer, Sharper, Smarter
Our products brings the power of quantum right into your hands.
Our products brings the power of quantum right into your hands.

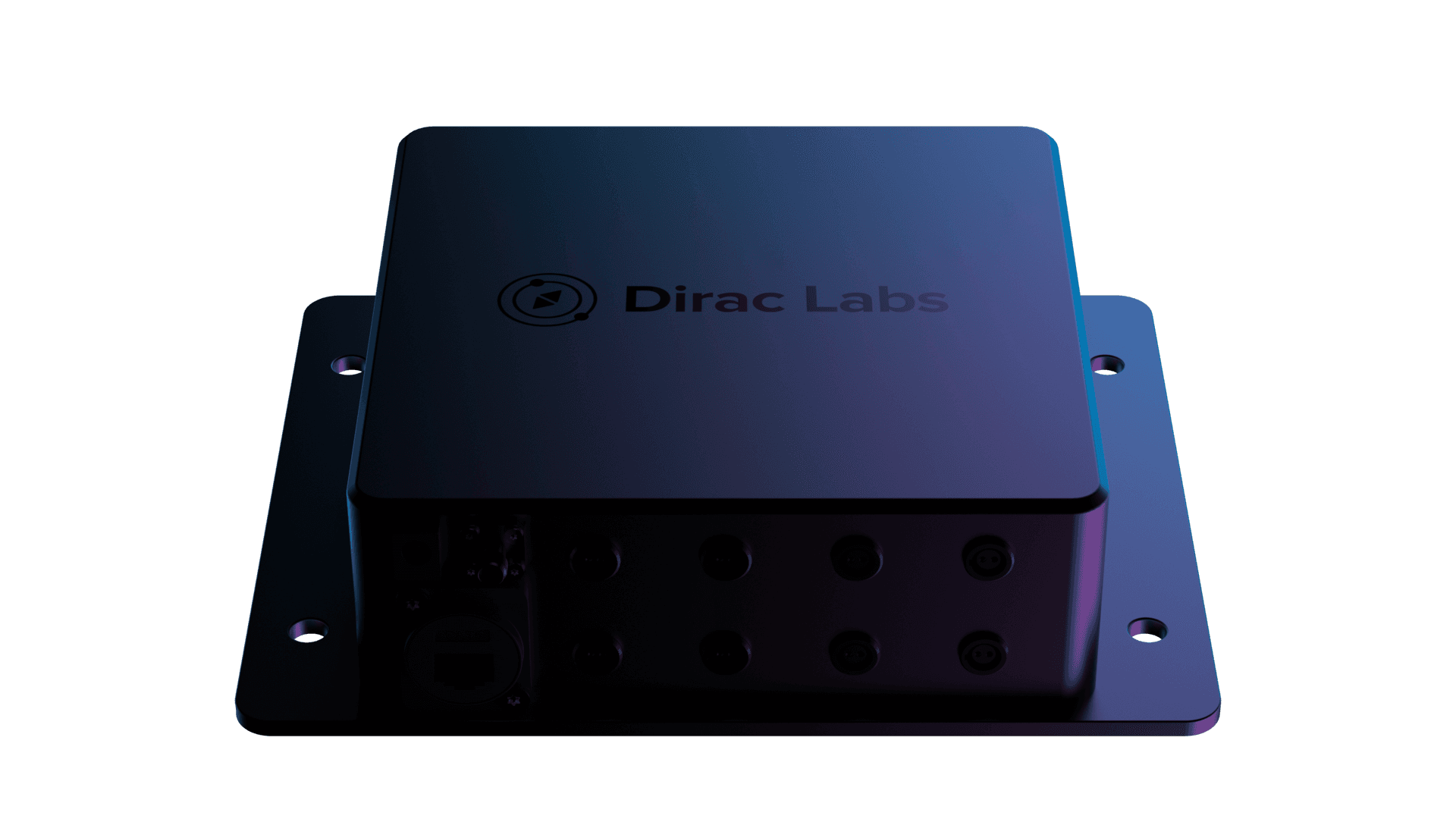

DiracSynth WB
DiracSynth WB
DiracSynth WB
DiracSynth WB
DiracSynth WB
A versatile multichannel RF synthesizer designed for precision and flexibility.
A versatile multichannel RF synthesizer designed for precision and flexibility.
A versatile multichannel RF synthesizer designed for precision and flexibility.
A versatile multichannel RF synthesizer designed for precision and flexibility.
A versatile multichannel RF synthesizer designed for precision and flexibility.
Equipped with onboard non-volatile memory. Retains all settings for seamless operation, ideal for reliable performance in the field.
Equipped with onboard non-volatile memory. Retains all settings for seamless operation, ideal for reliable performance in the field.
Equipped with onboard non-volatile memory. Retains all settings for seamless operation, ideal for reliable performance in the field.
Equipped with onboard non-volatile memory. Retains all settings for seamless operation, ideal for reliable performance in the field.
Equipped with onboard non-volatile memory. Retains all settings for seamless operation, ideal for reliable performance in the field.
Wide Range, Compact Form.
Wide Range, Compact Form.
Wide Range,
Compact Form.
Wide Range,
Compact Form.
Wide Range,
Compact Form
Each channel is software-programmable to generate distinct frequency signals or signals with adjustable phase shift.
Each channel is software-programmable to generate distinct frequency signals or signals with adjustable phase shift.
Each channel is software-programmable to generate distinct frequency signals or signals with adjustable phase shift.
Each channel is software-programmable to generate distinct frequency signals or signals with adjustable phase shift.
Each channel is software-programmable to generate distinct frequency signals or signals with adjustable phase shift.
Channels
Channels
Channels
8
8
8
Frequency range
Frequency range
Frequency range
DC to 9Ghz
DC to 9Ghz
DC to 9Ghz
Frequency resolution
Frequency resolution
Frequency resolution
0.25 Hz
0.25 Hz
0.25 Hz
Phase noise
Phase noise
Phase noise
-110 dBc/Hz
-110 dBc/Hz
-110 dBc/Hz
Output power
Output power
Output power
-25 dBm to 20 dBm
-25 dBm to 20 dBm
-25 dBm to 20 dBm
Reference input / output
Reference input / output
Reference input / output
10 MHz
10 MHz
10 MHz
Control & Monitoring
Control & Monitoring
Control & Monitoring
Ethernet/ UART
Ethernet/ UART
Ethernet/ UART
Power supply
Power supply
Power supply
<50 W
<50 W
<50 W
Channels
8
Frequency range
DC to 9Ghz
Frequency resolution
0.25 Hz
Phase noise
-110 dBc/Hz
Switching speed
1µs
Output power
-25 dBm to 20 dBm
Reference input / output
10 MHz
Reference output
10 MHz
Control & Monitoring
Ethernet/ UART
Dimensions (W x L x H)
150 x 150 x 50 mm³
Power supply
<50 W
Temperature
-40 to + 85 °C
Channels
8
Frequency range
DC to 9Ghz
Frequency resolution
0.25 Hz
Output power
-25 dBm to 20 dBm
Phase noise
-110 dBc/Hz
Switching speed
1µs
Reference input / output
10 MHz
Reference output
10 MHz
Control & Monitoring
Ethernet/ UART
Dimensions (W x L x H)
150 x 150 x 50 mm³
Power supply
<50 W
Temperature
-40 to + 85 °C
Custom configurations available separately
